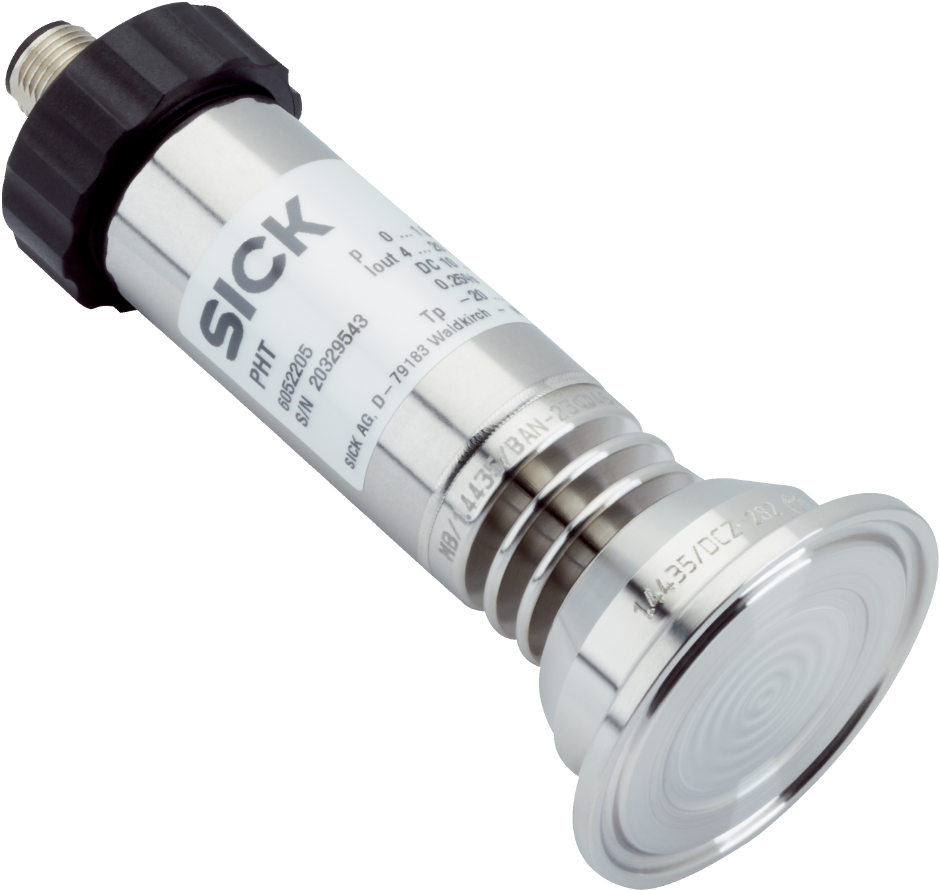

SICK PHT-RBX60ST20S0A5S0Z (6080721) — PRESSURE SENSOR

A SICK pressure sensor for precise measurement of gauge, absolute, or differential pressure in industrial process applications.

• Pressure unit: bar
• Measuring range: 0 bar ... 0.6 bar
• Accuracy: ? ± 0.5 % of the span
• Non-linearity: ? ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2
• Process connection: Tri-Clamp 2"
• Process temperature: –20 °C ... +150 °
• Output signal: 4 mA ... 20 mA, 2-wire
• Connection type: Flying leads, 3 m (zero and span not adjustable)
• Enclosure rating: IP68
• Supply voltage: 10 V DC ... 30 V DC
