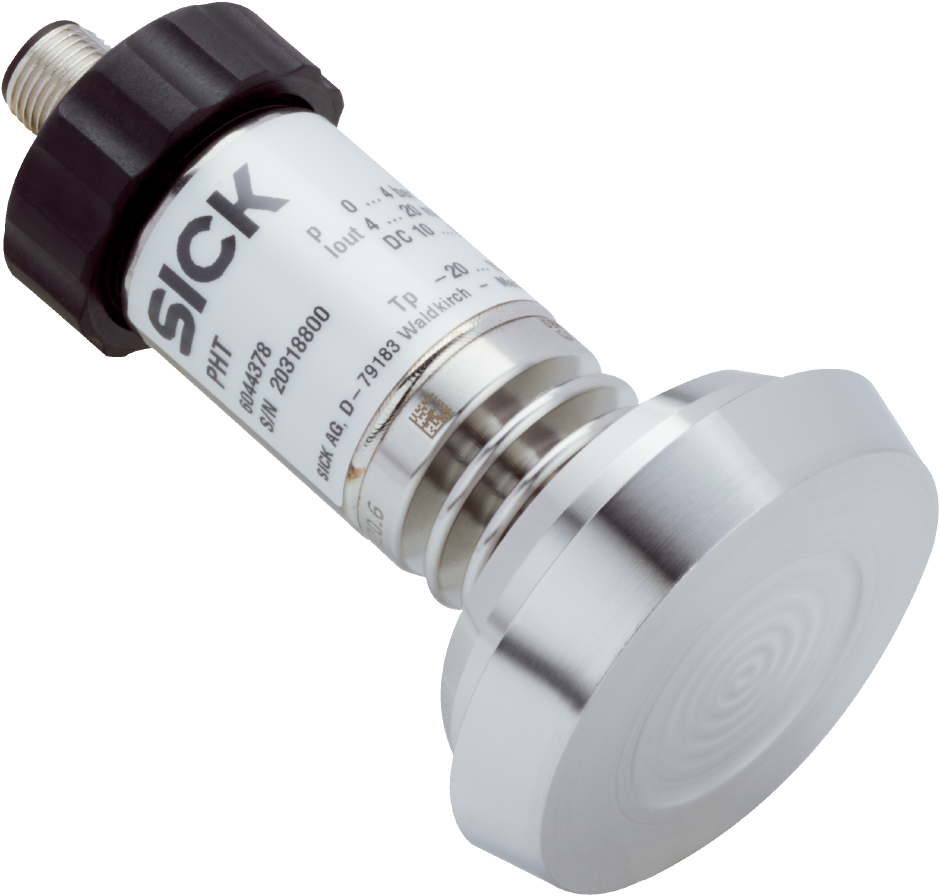

SICK PHT-RB4X0S520S0VMZ0Z (6072247) — PRESSURE SENSOR

A SICK pressure sensor for precise measurement of gauge, absolute, or differential pressure in industrial process applications.

• Pressure unit: bar
• Measuring range: 0 bar ... 4 bar
• Accuracy: ? ± 0.5 % of the span
• Non-linearity: ? ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2
• Process connection: Conical coupling (DIN 11851) DN 25 with union nut
• Process temperature: –20 °C ... +150 °
• Output signal: 0 V ... 10 V, 3-wire
• Connection type: M12 round connector x 1, 4-pin
• Enclosure rating: IP67
• Supply voltage: 14 V DC ... 30 V DC
