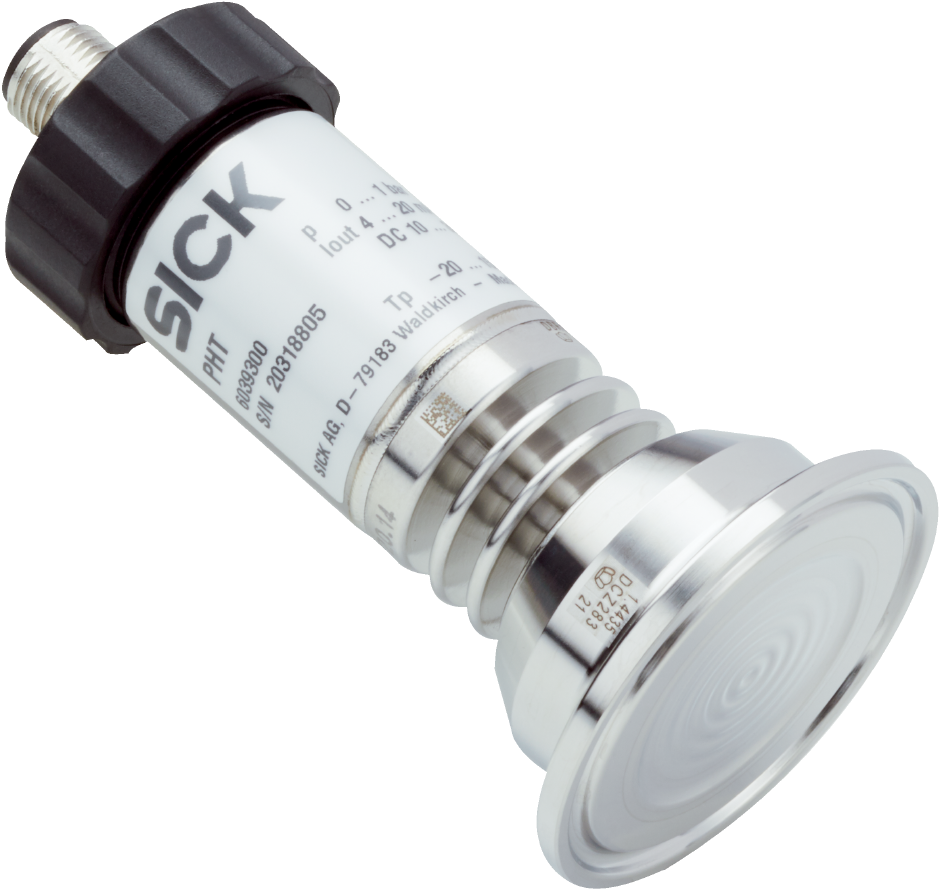

SICK PHT-RB2X5SD40S0AFT0Z (6039420) — PRESSURE SENSOR

A SICK pressure sensor for precise measurement of gauge, absolute, or differential pressure in industrial process applications.

• Pressure unit: bar
• Measuring range: 0 bar ... 2.5 bar
• Accuracy: ? ± 0.5 % of the span
• Non-linearity: ? ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2
• Process connection: Clamp (DIN 32676) DN 40
• Process temperature: –20 °C ... +150 °
• Output signal: 4 mA ... 20 mA, 2-wire
• Enclosure rating: IP67
• Supply voltage: 11 V DC ... 30 V DC
