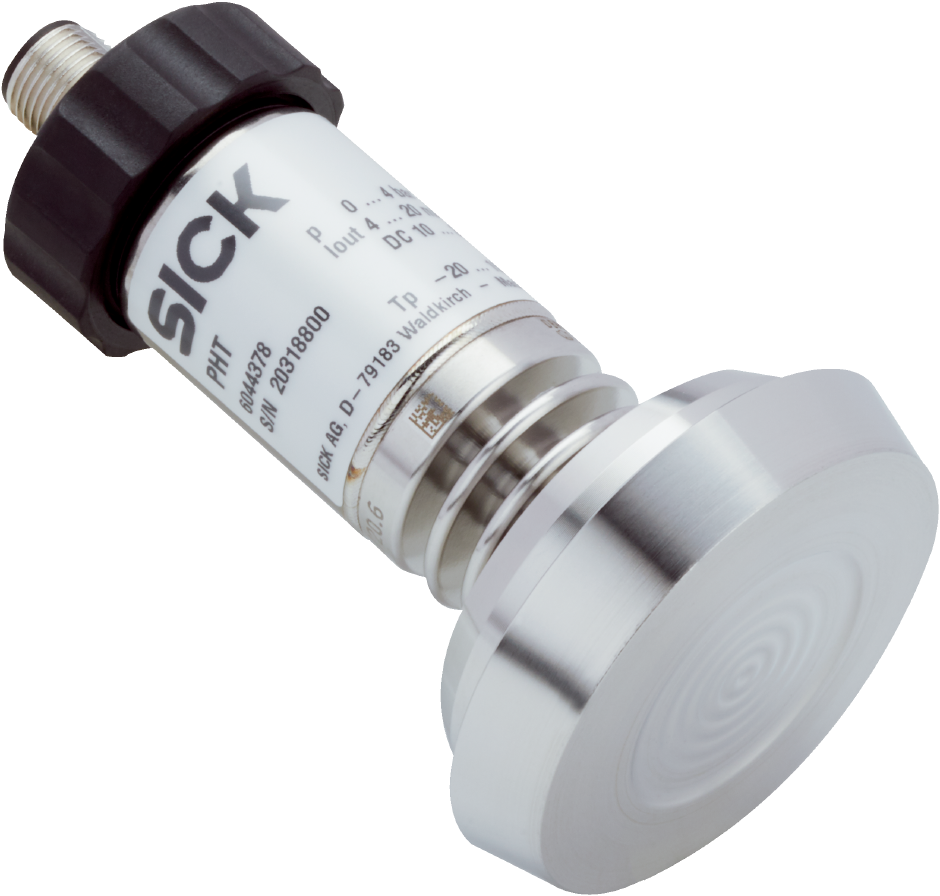

Sick PHT-AB6X0S550S0ALS0Z (6073552)

Pressure sensors PHT, PHT-AB6X0S550S0ALS0Z Pressure type: Absolute pressure Pressure unit: bar Measuring range: 0 bar ... 6 bar Accuracy: ? ± 0.5 % of the span Non-linearity: ? ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 Process connection: Conical coupling (DIN 11851) DN 50 with union nut Process temperature: –20 °C ... +150 °C Seal: Without seal Output signal: 4 mA ... 20 mA, 2-wire Connection type: L-connector (DIN EN 175301-803 A) Enclosure rating: IP65 Supply voltage: 10 V DC ... 30 V DC
