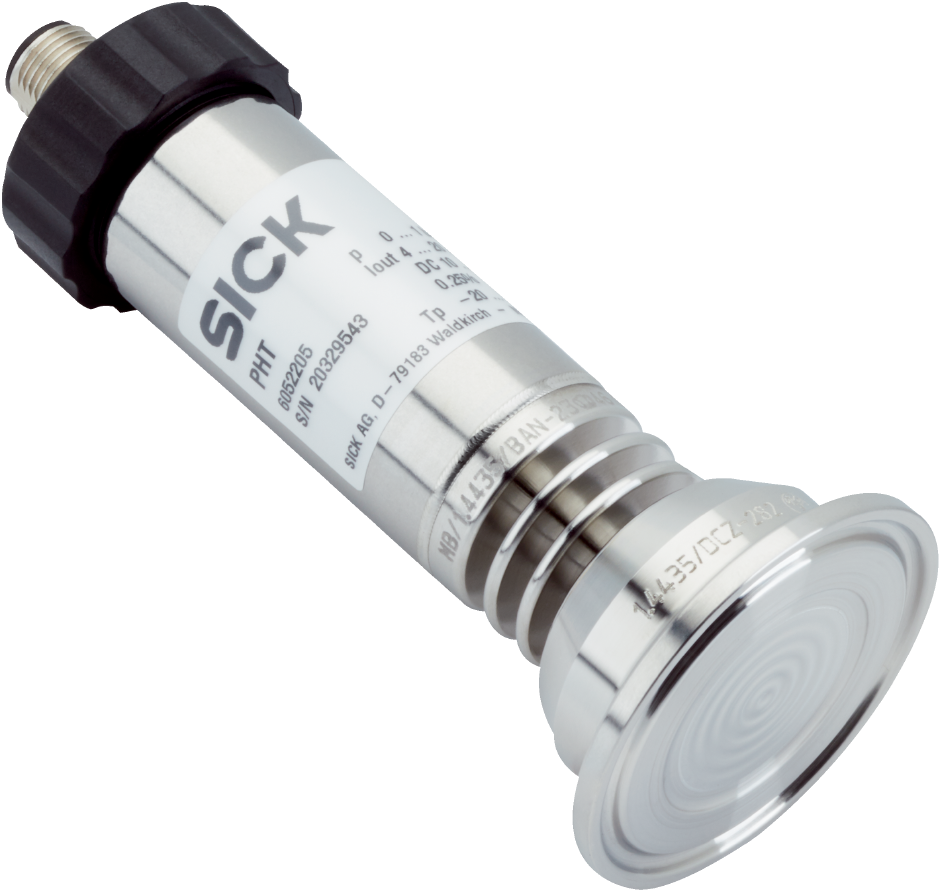

Sick PHT-AB4X0ET10SEALS0Z (6071068)

Pressure sensors PHT, PHT-AB4X0ET10SEALS0Z Pressure type: Absolute pressure Pressure unit: bar Measuring range: 0 bar ... 4 bar Accuracy: ? ± 0.25 % of the span Non-linearity: ? ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 Process connection: Tri-Clamp 1 ½" Process temperature: –20 °C ... +150 °C Seal: EPDM Output signal: 4 mA ... 20 mA, 2-wire Connection type: L-connector (DIN EN 175301-803 A) Enclosure rating: IP65 Supply voltage: 10 V DC ... 30 V DC
