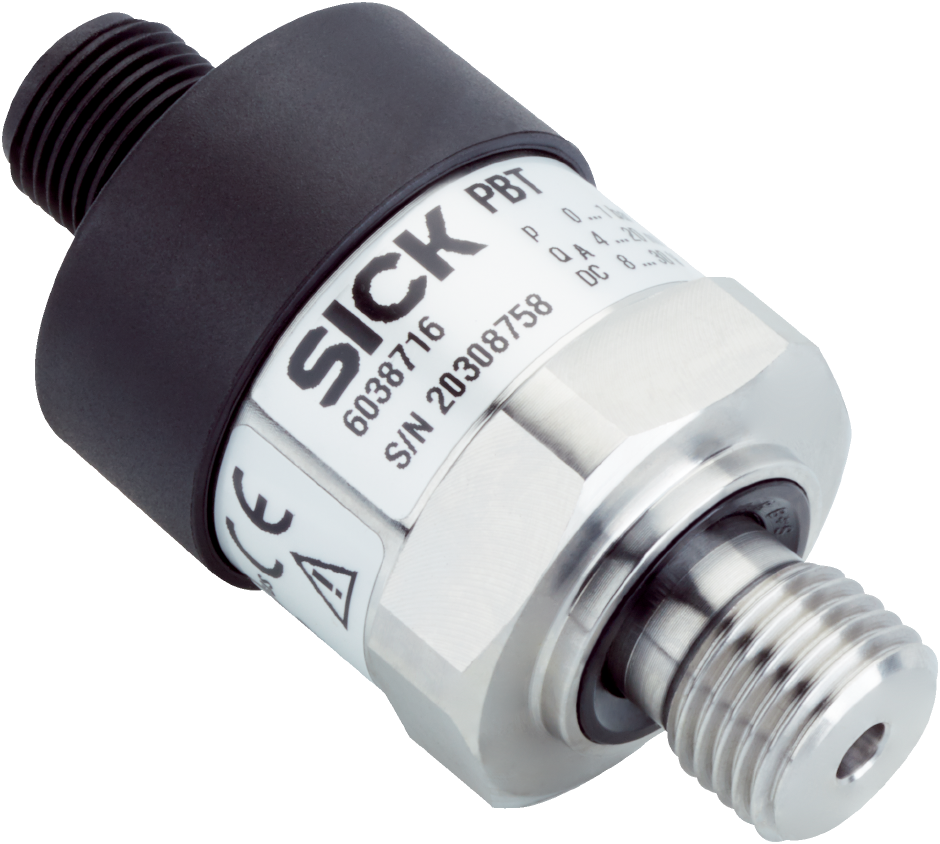

SICK PBT-RB6X0SG1WEFUMA0Z (6042556) — PRESSURE SENSOR

A SICK pressure sensor for precise measurement of gauge, absolute, or differential pressure in industrial process applications.

• Pressure unit: bar
• Measuring range: 0 bar ... 6 bar
• Accuracy: ? ± 1 % of the span
• Non-linearity: ? ± 0.5 %, (Best Fit Straight Line, BFSL) according to IEC 61298-2
• Process connection: G ¼ A according to DIN 3852-
• Pressure port: Extended pressure port 6 mm
• Process temperature: –30 °C ... +100 °
• Output signal: 0 V ... 5 V, 3-wire
• Connection type: M12 round connector x 1, 4-pin
• Enclosure rating: IP67
