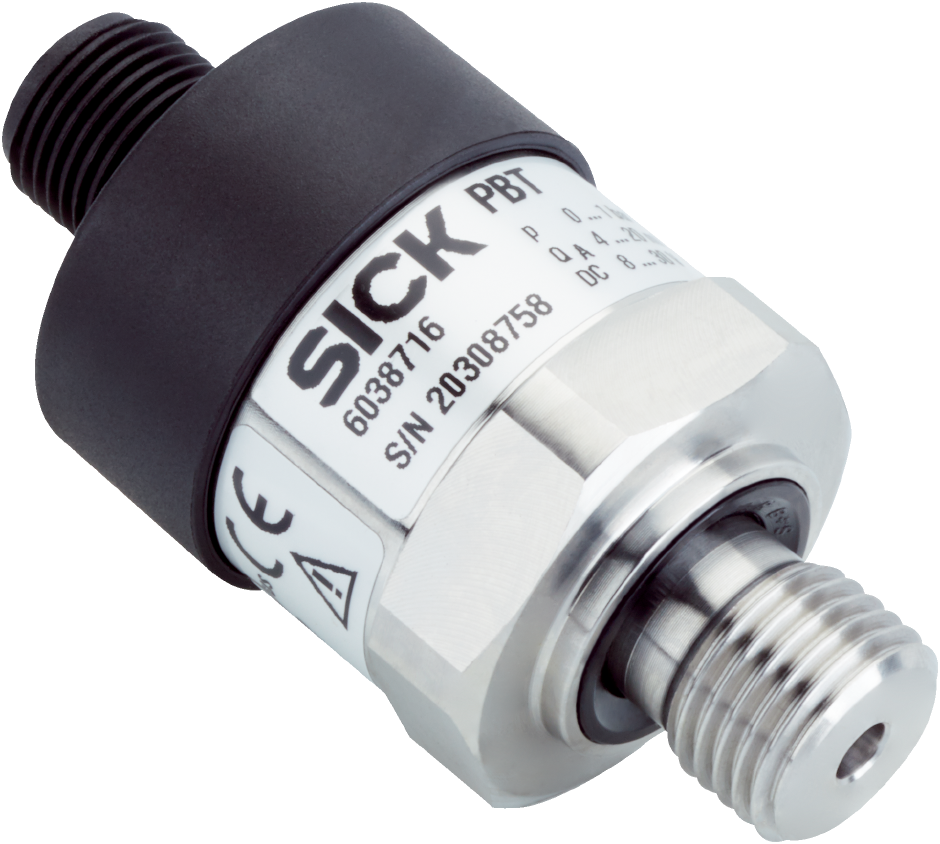

SICK PBT-CB016SG1SEFALA0Z (6042051) — PRESSURE SENSOR

A SICK pressure sensor for precise measurement of gauge, absolute, or differential pressure in industrial process applications.

• Pressure unit: bar
• Measuring range: –1 bar ... 15 bar
• Accuracy: ? ± 1 % of the span
• Non-linearity: ? ± 0.5 %, (Best Fit Straight Line, BFSL) according to IEC 61298-2
• Process connection: G ¼ A according to DIN 3852-
• Process temperature: –30 °C ... +100 °
• Output signal: 4 mA ... 20 mA, 2-wire
• Connection type: L-connector acc. to DIN 175301-803
• Enclosure rating: IP65
