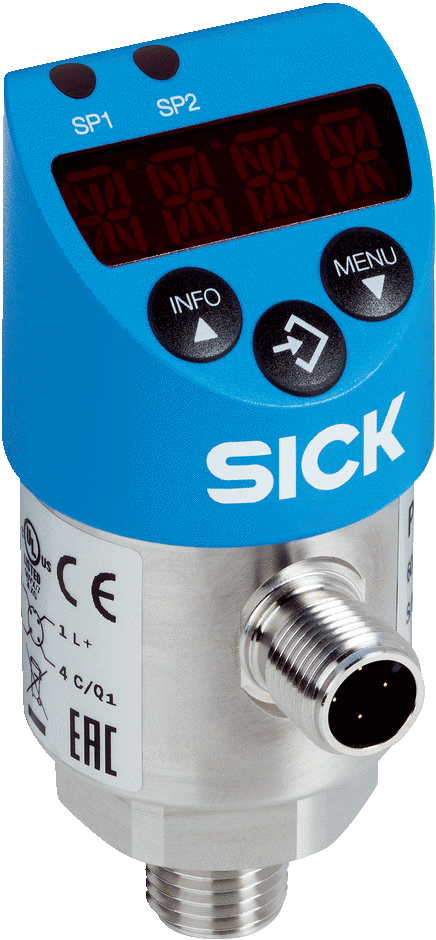

Sick PBS2-RB100SG1NSDNMA0Z (6080570)

Pressure sensors PBS plus, PBS2-RB100SG1NSDNMA0Z Pressure type: Gauge pressure Pressure unit: bar Measuring range: 0 bar ... 100 bar0 psi ... 3,626 psi Accuracy: ? ± 0.5 % of the span Process connection: G ¼ A according to DIN 3852-E Pressure port: 0.3 mm pressure port Process temperature: –20 °C ... +85 °C Seal: NBR seal installed, FPM/FKM seal included Output signal: IO-Link/PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V Connection type: M12 round connector x 1, 4-pin Enclosure rating: IP67, IP67 Supply voltage: 15 V DC ... 35 V DC
