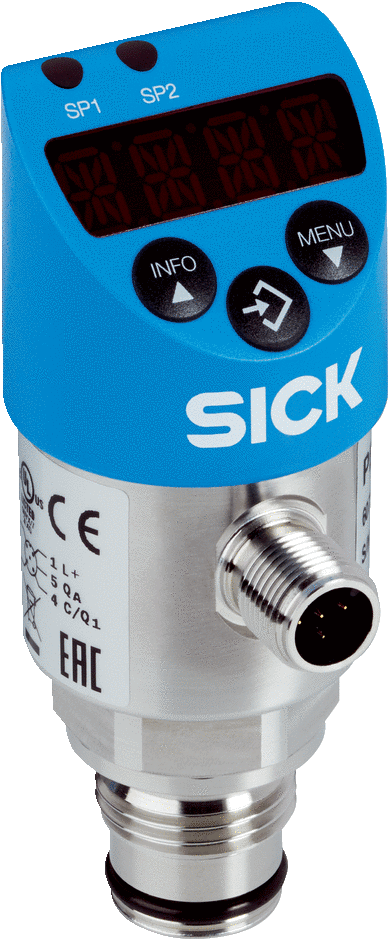

SICK PBS2-CB4X0SF2FSDQ5A0Z (6074245) — PRESSURE SENSOR

A SICK pressure sensor for precise measurement of gauge, absolute, or differential pressure in industrial process applications.

• Pressure unit: bar
• Measuring range: –1 bar ... 3 bar–14.5 psi ... 44 psi
• Accuracy: ? ± 0.5 % of the span
• Process connection: G ½
• Process temperature: –20 °C ... +85 °
• Seal: NBR seal installed,
• Output signal: IO-Link/PNP/NPN + PNP/NPN + 4 mA ... 20 mA / 0 V ... 10
• Connection type: Round connector M12 x 1, 5-pin
• Enclosure rating: IP67, IP67
• Supply voltage: 15 V DC ... 35 V DC
