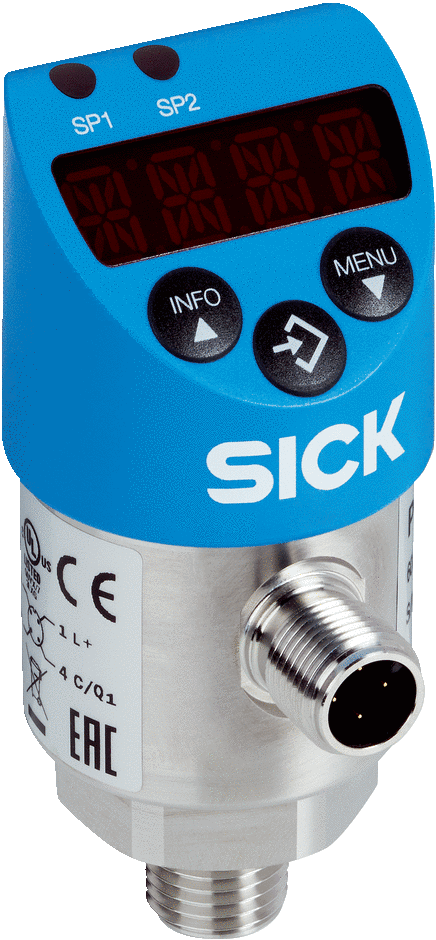

Sick PBS2-AB016SG1SSDQ5A0Z (6074151)

Pressure sensors PBS plus, PBS2-AB016SG1SSDQ5A0Z Pressure type: Absolute pressure Pressure unit: bar Measuring range: 0 bar ... 16 bar0 psi ... 232 psi Accuracy: ? ± 0.5 % of the span Process connection: G ¼ A according to DIN 3852-E Pressure port: 3.5 mm Standard Process temperature: –20 °C ... +85 °C Seal: NBR seal installed, FPM/FKM seal included Output signal: IO-Link/PNP/NPN + PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V Connection type: Round connector M12 x 1, 5-pin Enclosure rating: IP67, IP67 Supply voltage: 15 V DC ... 35 V DC
