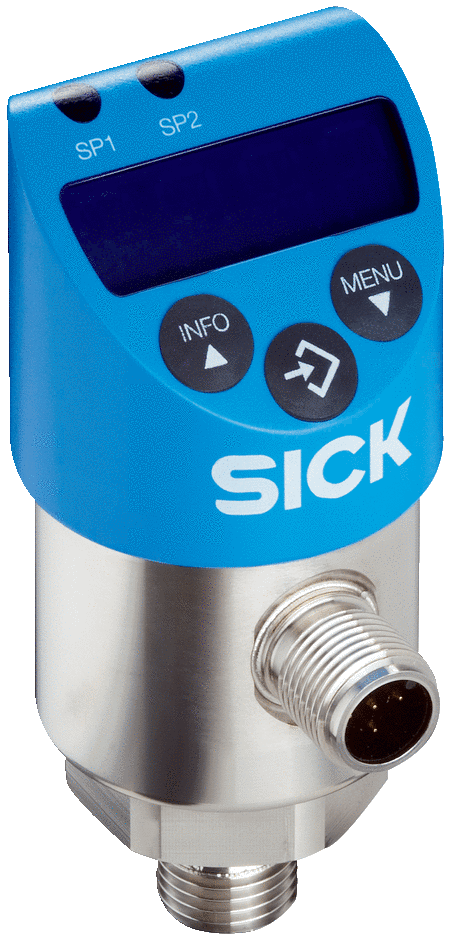

SICK PBS-RK010SR1SS0LMA0Z (6074634) — PRESSURE SENSOR

A SICK pressure sensor for precise measurement of gauge, absolute, or differential pressure in industrial process applications.

• Pressure unit: kg/cm²
• Measuring range: 0 kg/cm² ... 10 kg/cm²
• Accuracy: ? ± 1 % of the span
• Process connection: R ¼ ISO 7 (DIN2999)
• Pressure port: 3.5 mm
• Process temperature: –20 °C ... +85 °
• Output signal: IO-Link/PNP +
• Connection type: M12 round connector x 1, 4-pin
• Enclosure rating: IP67
• Supply voltage: 15 V DC ... 35 V DC
