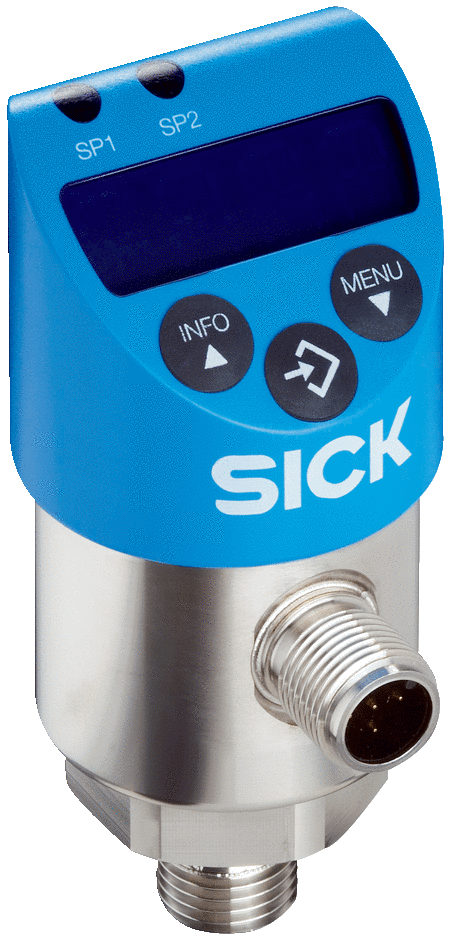

SICK PBS-RK010SG1SSNAMA0Z (6068736) — PRESSURE SENSOR

A SICK pressure sensor for precise measurement of gauge, absolute, or differential pressure in industrial process applications.

• Pressure unit: kg/cm²
• Measuring range: 0 kg/cm² ... 10 kg/cm²
• Accuracy: ? ± 1 % of the span
• Process connection: G ¼ A according to DIN 3852-
• Pressure port: 3.5 mm
• Process temperature: –20 °C ... +85 °
• Output signal: 2 x
• Connection type: M12 round connector x 1, 4-pin
• Enclosure rating: IP67
• Supply voltage: 15 V DC ... 35 V DC
