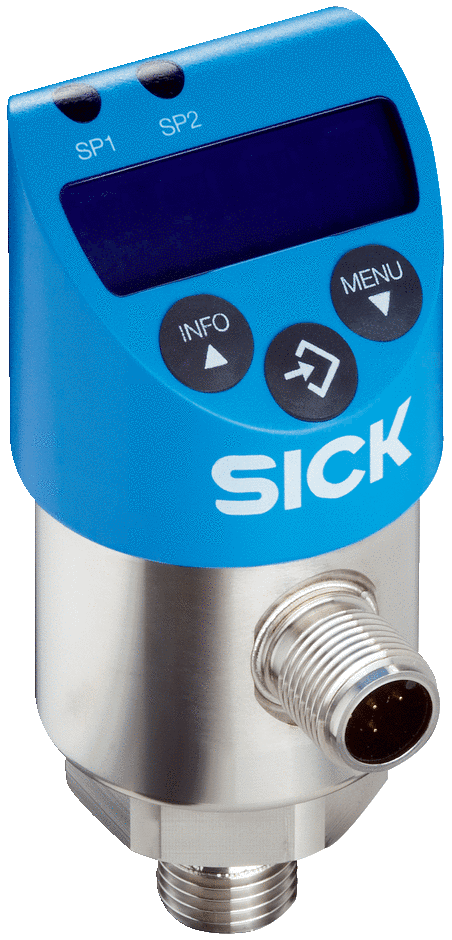

Sick PBS-RB025SN1SS0D5A0G (6068982)

Pressure sensors PBS, PBS-RB025SN1SS0D5A0G Pressure type: Gauge pressure Pressure unit: bar Measuring range: 0 bar ... 25 bar Accuracy: ? ± 1 % of the span Process connection: ¼'' NPT Pressure port: 3.5 mm Standard Process temperature: –20 °C ... +85 °C Seal: Without seal Output signal: 2 x PNP + 4 mA ... 20 mA Connection type: Round connector M12 x 1, 5-pin Enclosure rating: IP67 Supply voltage: 15 V DC ... 35 V DC Model: Free from oil and grease
