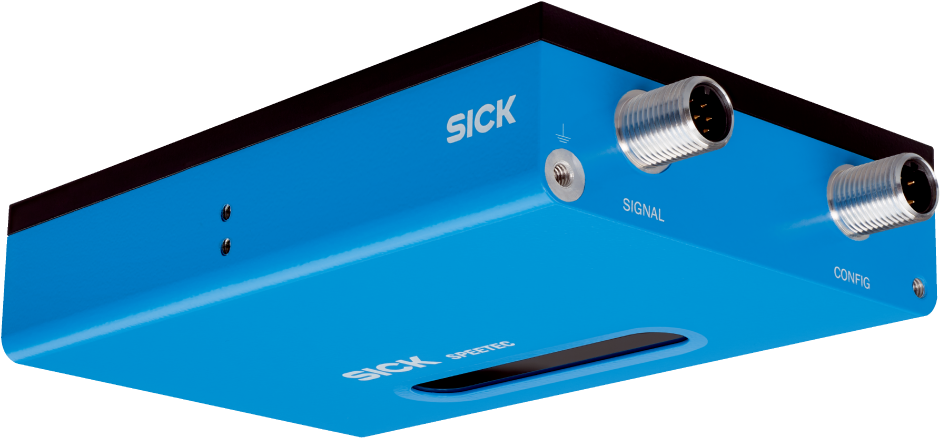

Sick NCV50B-11EC0100100 SPEETEC (1106857)

Non-contact motion sensors SPEETEC 1D, NCV50B-11EC0100100 Nominal measuring distance: 50 mm Direction of movement: 1D, x-direction Laser class: 1 Wavelength/Type of light: 850 nm invisible infrared light Supply voltage: 12 V ... 30 V Communication Interface detail: HTL / Push pull Connection type: Male connector, M12, 8-pin, A-coded Parameterization and diagnostic interface: Male connector, M12, 4-pin, D-coded (only for variants that can be parameterized) Measuring increment (µm/pulse): 100 Housing version: Standard Industrial version: Standard Speed measuring range: > 0 m/s  ... 10 m/s Programmable/configurable: no Measurement accuracy: 0.1 % Possible static measuring distance: 30 ... 100 mm
