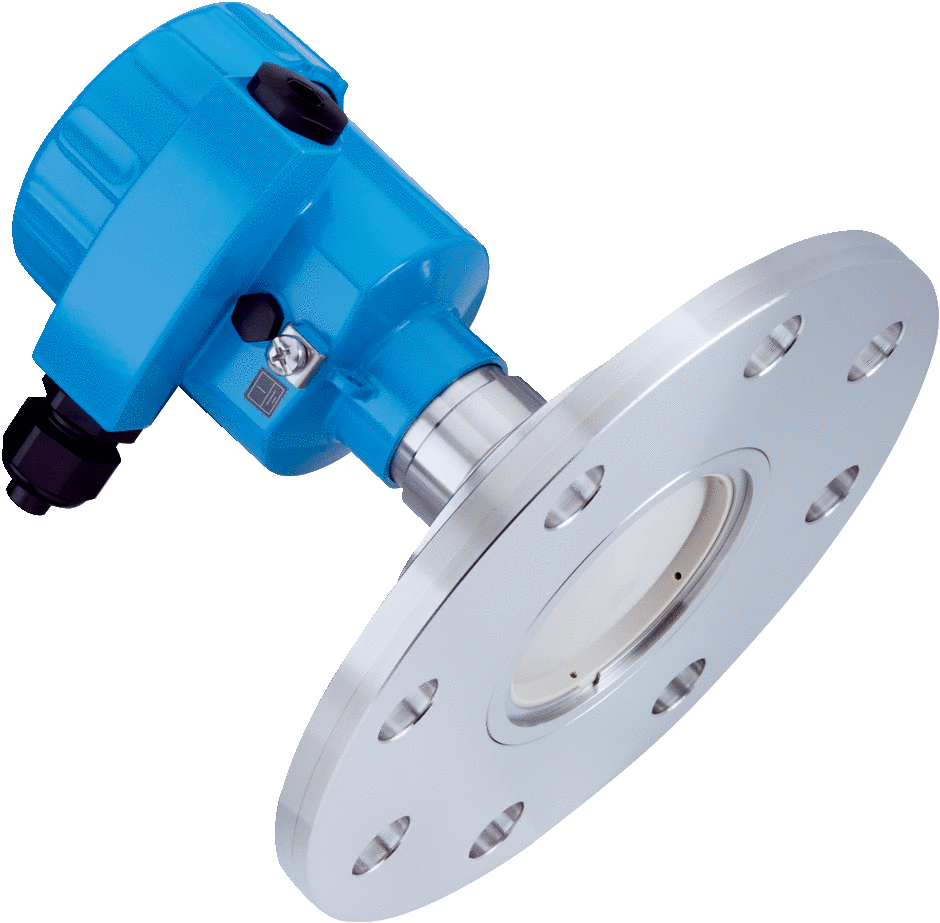

SICK LFR-XXFFBJ2HAKX (6081062) — LEVEL SENSOR

A SICK level sensor for reliable point-level detection or continuous level measurement of liquids and bulk solids in tanks and vessels.

• Measuring range: Up to 25 m (82.02 ft)
• Process pressure: In combination with process temperature –196 °C ... +200 °C, –1 bar ... 25 bar (-100 kPa ... 2,500 kPa / –14.5 psig ... 362.6 psig) are possible –1 bar ... 16 bar, (-100 kPa ... 1,600 kPa / –14.5 psig ... 232 psig)
• Process temperature: –40 °C ... +200 °
• Output signal: 4 mA ... 20 m
• Connection type: M20 x 1.5 / cable gland nickel-plated brass (ø5 mm - 9 mm)
• Process connection: Flange DN 50 PN 40 form C, DIN 2501 / 316
• Enclosure rating: IP66 / IP68
• Control element: BluetoothMagnet pin operation
