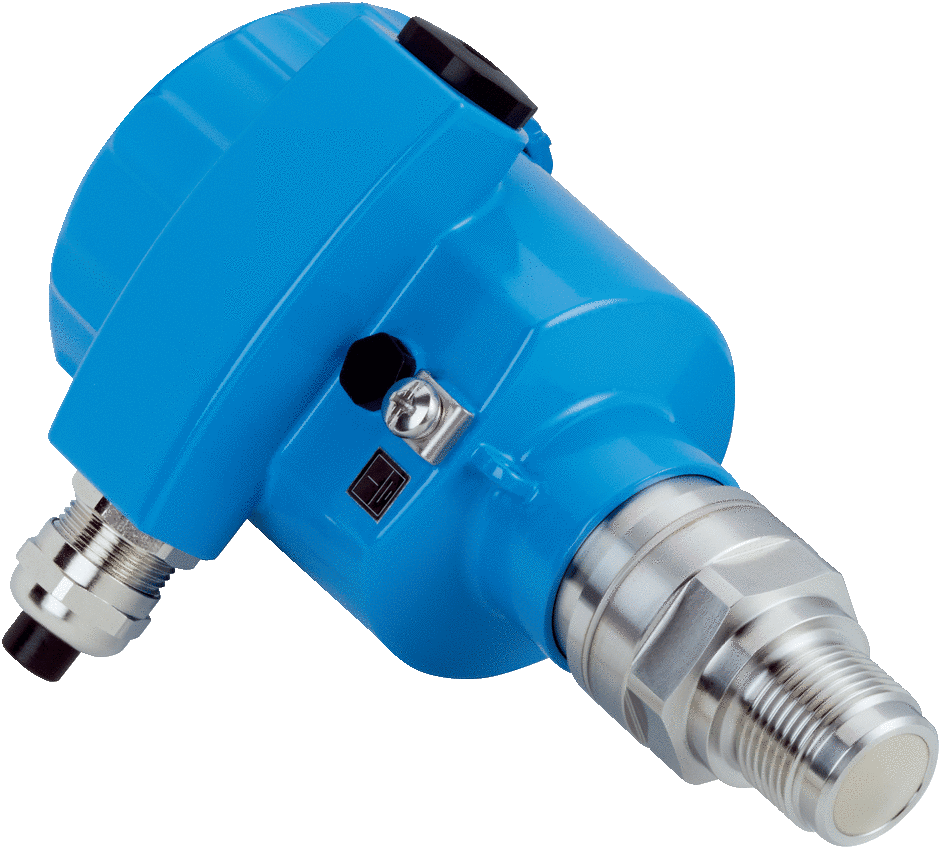

Sick LFR-IEUTBAPHAAX LEVEL FLUID RADAR (6077142)

Level sensors LFR SicWave, LFR-IEUTBAPHAAX Measuring range: Up to 10 m (32.81 ft) Process pressure: –1 bar ... 20 bar, (-100 kPa ... 2,000 kPa / –14.5 psig ... 290.1 psig) Process temperature: –40 °C ... +130 °C ATEX: IEC Ex db IIC T6...T1, Ga/Gb, Gb Probe type: Thread with integrated horn antenna made from PEEK Output signal: 4 mA ... 20 mA / HART Connection type: ½" NPT / cable gland nickel-plated brass (ø 6 mm - 12 mm) Housing material: Aluminum Process connection: Thread ¾'' NPT PN20, ASME B1.20.1 / 316L Indication: Installed Enclosure rating: IP66 / IP68 Control element: Pushbutton operation
