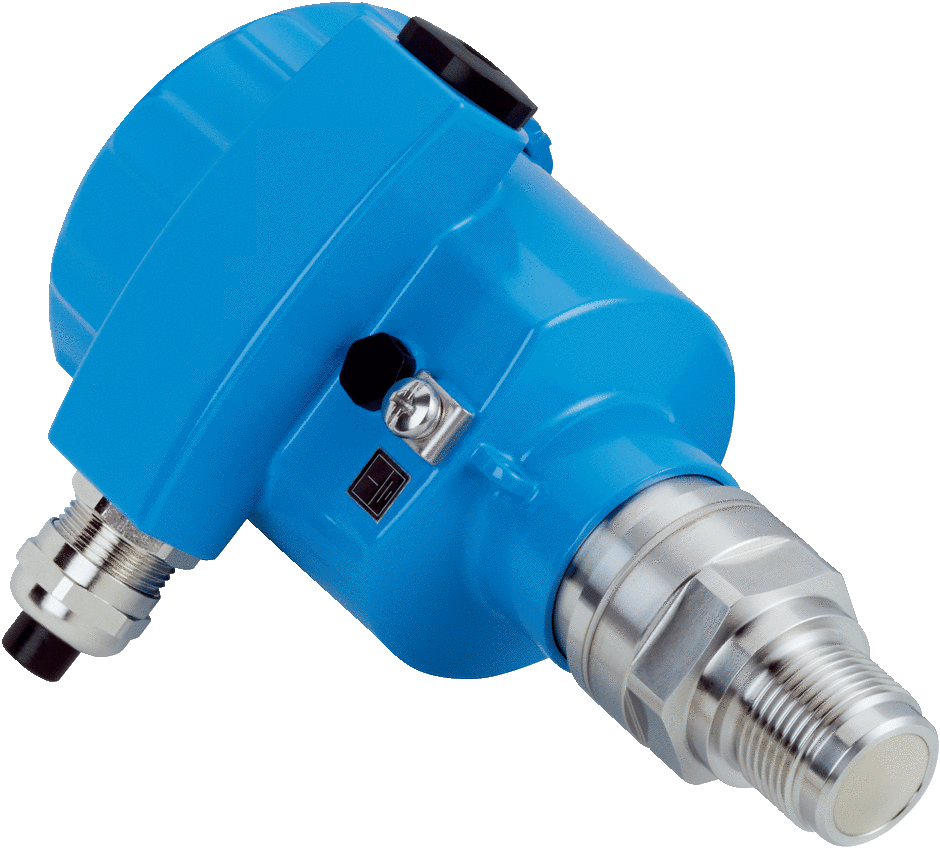

Sick LFR-ICTTBAJHKAX LEVEL FLUID RADAR (6077139)

Level sensors LFR SicWave, LFR-ICTTBAJHKAX Measuring range: Up to 10 m (32.81 ft) Process pressure: –1 bar ... 20 bar, (-100 kPa ... 2,000 kPa / –14.5 psig ... 290.1 psig) Process temperature: –40 °C ... +130 °C ATEX: IEC Ex ia IIC T6...T1, Ga, Ga/Gb, Gb Probe type: Thread with integrated horn antenna made from PEEK Output signal: 4 mA ... 20 mA / HART Connection type: ½" NPT / cable gland PA (ø 5 mm - 9 mm) Housing material: Plastic Process connection: Thread ¾'' NPT PN20, ASME B1.20.1 / 316L Indication: Installed Enclosure rating: IP66 / IP67 Control element: Pushbutton operation
