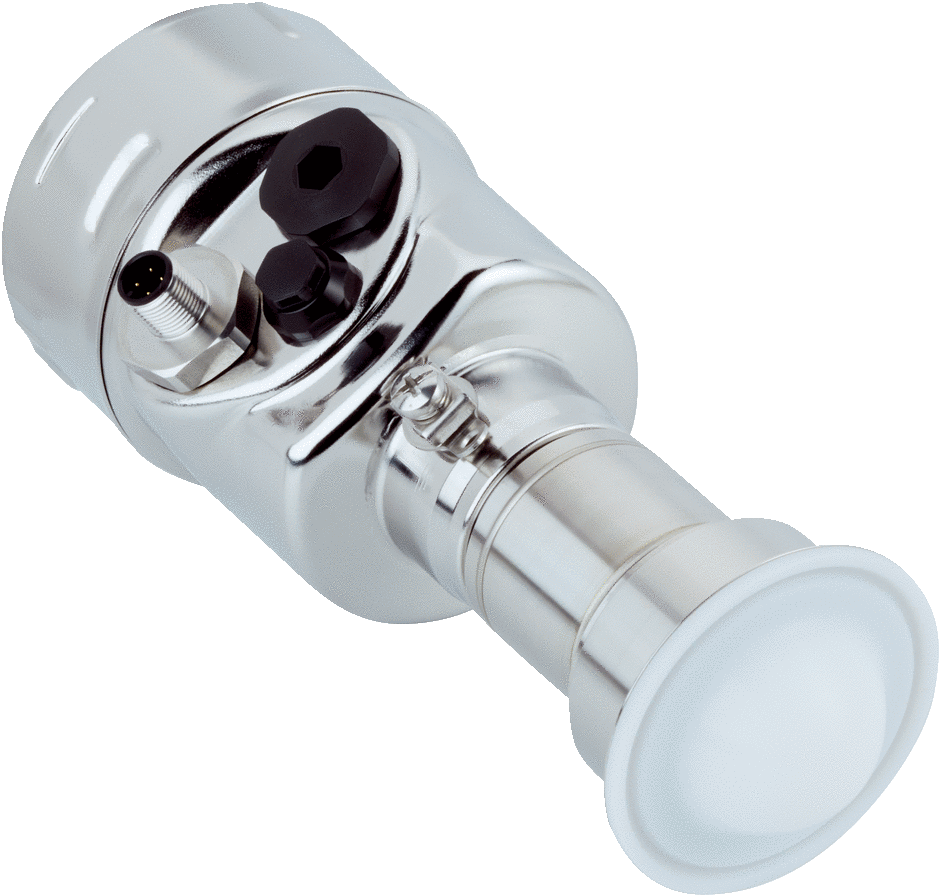

Sick LFR-ACHCAJMHAKX LEVEL FLUID RADAR (6082883)

Level sensors LFR SicWave, LFR-ACHCAJMHAKX Measuring range: Up to 25 m (82.02 ft) Process pressure: –1 bar ... 16 bar, (-100 kPa ... 1,600 kPa / –14.5 psig ... 232 psig) Process temperature: –40 °C ... +200 °C ATEX: ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Probe type: Hygiene connection with encapsulated antenna system Output signal: 4 mA ... 20 mA / HART Connection type: M20 x 1.5 / cable gland PA black (ø 5 mm - 9 mm) Housing material: Aluminum Process connection: Clamp 2'' PN16 (diameter 64 mm) DIN32676, ISO2825 / 316L Indication: Installed Enclosure rating: IP66 / IP68 Control element: BluetoothMagnet pin operation
