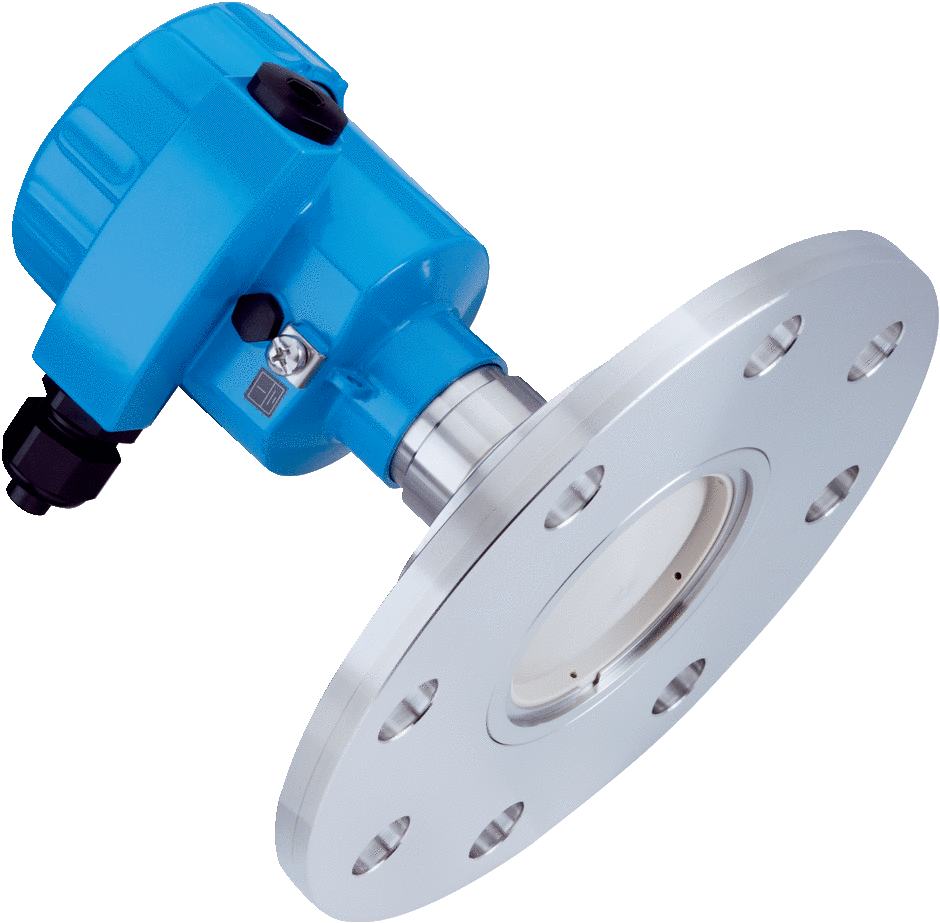

Sick LFR-ACFFLJ2HAXX LEVEL FLUID RADAR (6077870)

Level sensors LFR SicWave, LFR-ACFFLJ2HAXX Measuring range: Up to 30 m (98.43 ft) Process pressure: –1 bar ... 16 bar, (-100 kPa ... 1,600 kPa / –14.5 psig ... 232 psig) Process temperature: –40 °C ... +200 °C ATEX: ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Probe type: Flange with encapsulated antenna system Output signal: 4 mA ... 20 mA / HART Connection type: M20 x 1.5 / cable gland nickel-plated brass (ø5 mm - 9 mm) Housing material: Aluminum Process connection: Flange DN100 PN16 Form C, DIN2501 / 316L Indication: Without Enclosure rating: IP66 / IP68
