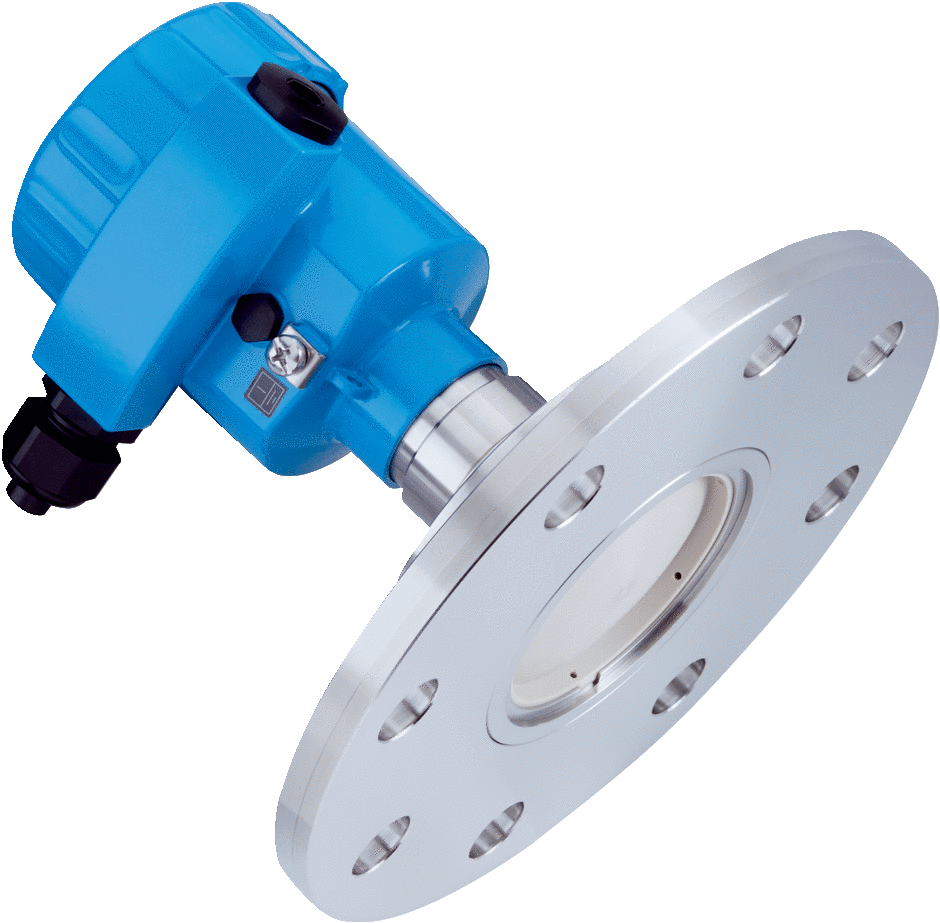

Sick LFR-ACFFHIMHAKX LEVEL FLUID RADAR (6081910)

Level sensors LFR SicWave, LFR-ACFFHIMHAKX Measuring range: Up to 30 m (98.43 ft) Process pressure: In combination with process temperature –196 °C ... +200 °C, –1 bar ... 25 bar (-100 kPa ... 2,500 kPa / –14.5 psig ... 362.6 psig) are possible –1 bar ... 16 bar, (-100 kPa ... 1,600 kPa / –14.5 psig ... 232 psig) Process temperature: –40 °C ... +130 °C ATEX: ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Probe type: Flange with encapsulated antenna system Output signal: 4 mA ... 20 mA / HART Connection type: M20 x 1.5 / cable gland PA black (ø 5 mm - 9 mm) Housing material: Aluminum Process connection: Flange DN 80 PN 40 form C, DIN 2501 / 316L Indication: Installed Enclosure rating: IP66 / IP68 Control element: BluetoothMagnet pin operation
