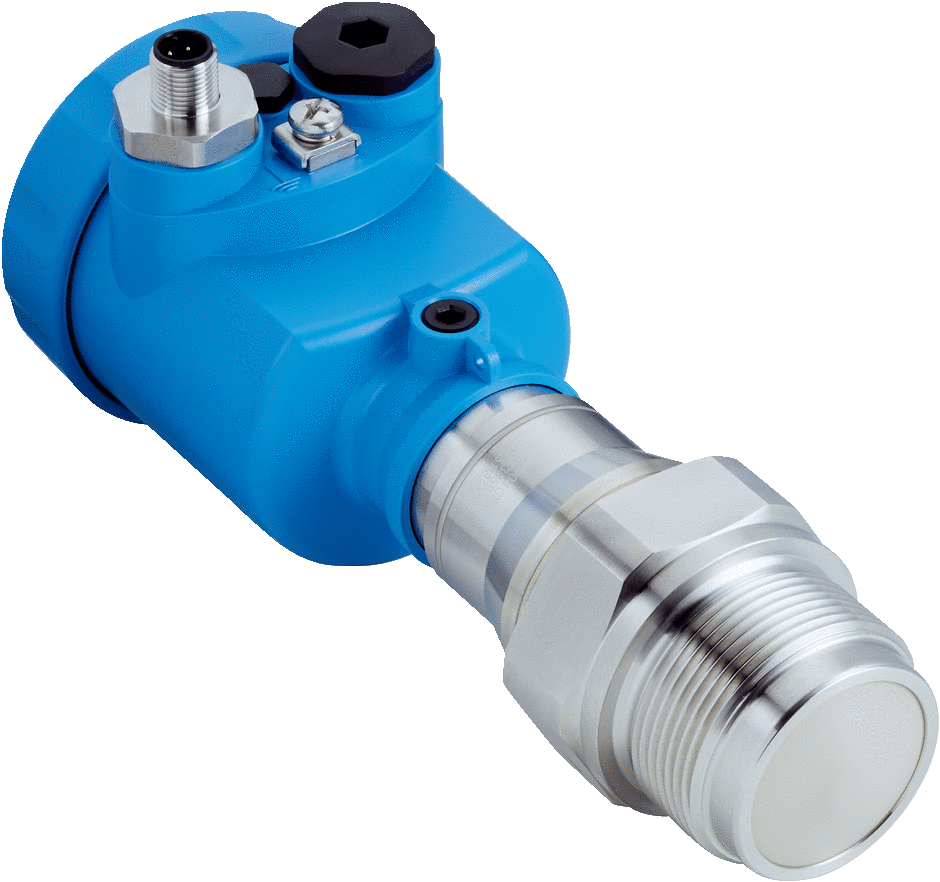

Sick LBR-XXTTCAMHKKX LEVEL BULK RADAR (6078444)

Level sensors LBR SicWave, LBR-XXTTCAMHKKX Measuring range: Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Process pressure: –1 bar ... 20 bar, (-100 kPa ... 2,000 kPa / –14.5 psig ... 290.1 psig) Process temperature: –40 °C ... +130 °C Probe type: Thread with integrated horn antenna made from PEEK Output signal: 4 mA ... 20 mA / HART Connection type: M20 x 1.5 / cable gland PA black (ø 5 mm - 9 mm) Housing material: Plastic PBT (polyester) Process connection: Thread G 1 ½ PN20, DIN3852-A / 316L Indication: Installed Enclosure rating: IP67 / IP67 Control element: BluetoothMagnet pin operation
