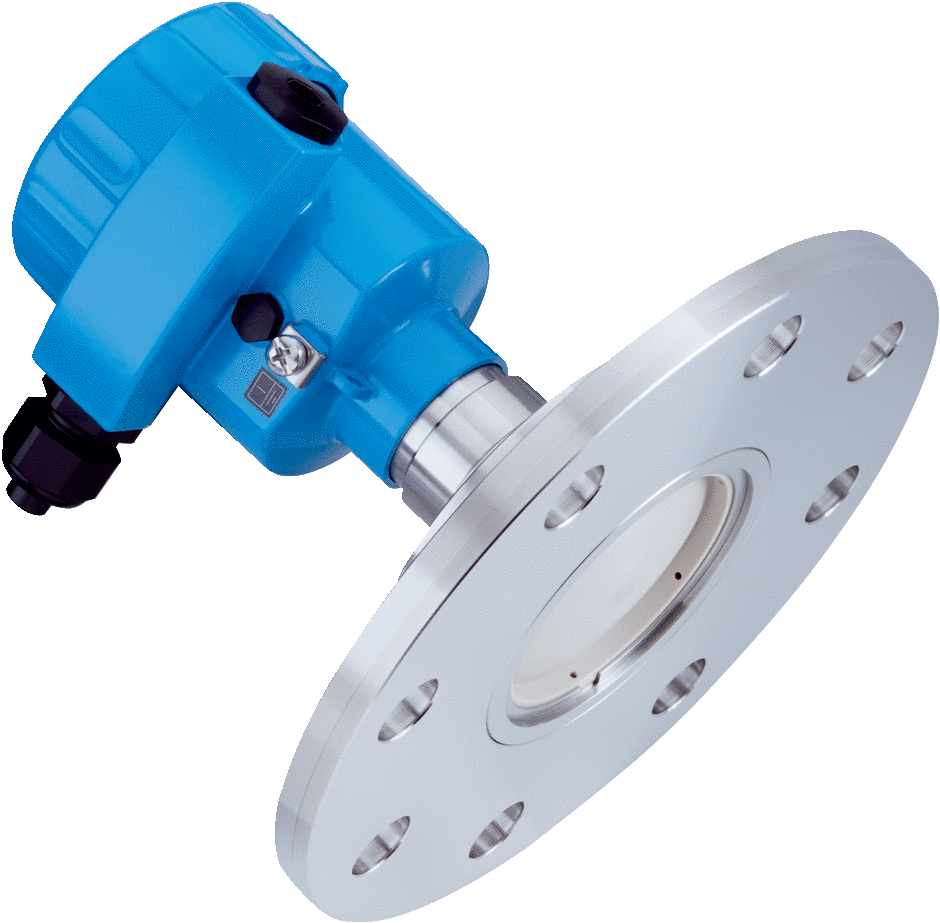

Sick LBR-XXCFBAMHAKX LEVEL BULK RADAR (6081906)

Level sensors LBR SicWave, LBR-XXCFBAMHAKX Measuring range: Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Process pressure: –1 bar ... 3 bar, (-100 kPa ... 300 kPa / –14.5 psig ... 43.5 psig) Process temperature: –40 °C ... +130 °C Probe type: Metal jacketed lens antenna / PEEK / c/w air purge connection Output signal: 4 mA ... 20 mA / HART Connection type: M20 x 1.5 / cable gland PA black (ø 5 mm - 9 mm) Housing material: Aluminum die cast AlSi10Mg, powder-coated (base: polyester) Process connection: Flange DN 100 PN 16 form B, DIN 316 / 316L Indication: Installed Enclosure rating: IP66 / IP68 Control element: BluetoothMagnet pin operation
