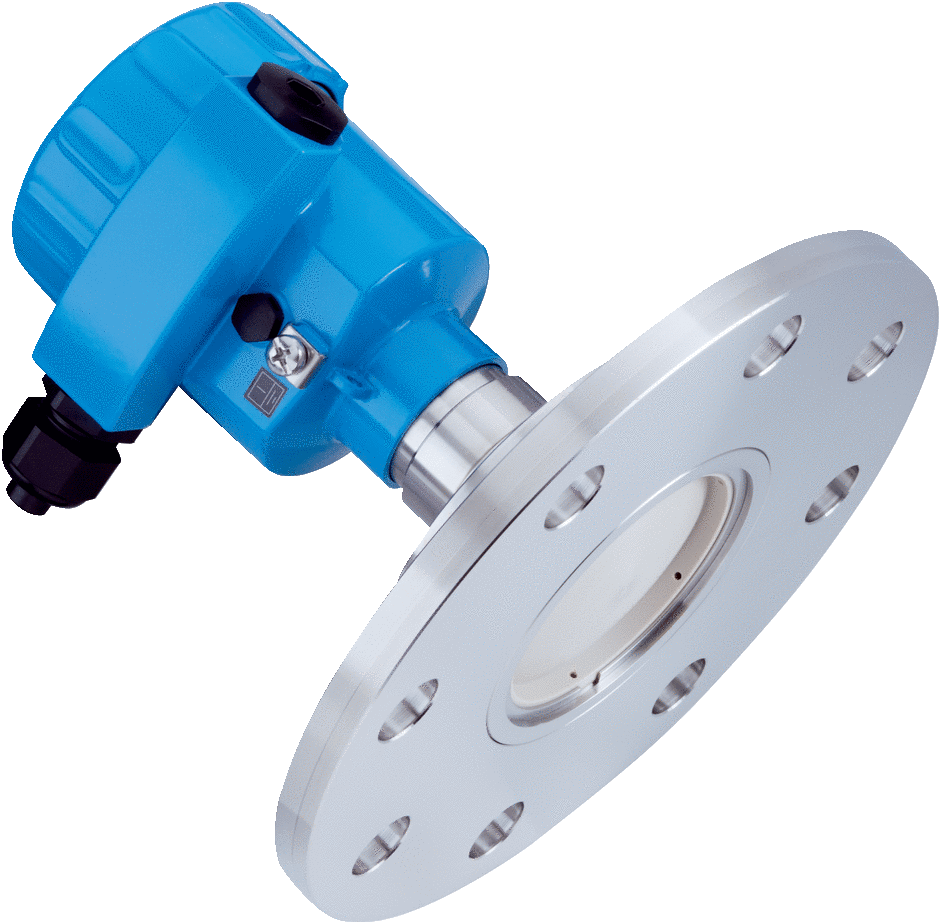

SICK LBR-XXCFABBHAKX (6081201) — LEVEL SENSOR

A SICK level sensor for reliable point-level detection or continuous level measurement of liquids and bulk solids in tanks and vessels.

• Measuring range: Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft)
• Process pressure: –1 bar ... 3 bar, (-100 kPa ... 300 kPa / –14.5 psig ... 43.5 psig)
• Process temperature: –40 °C ... +200 °
• Output signal: 4 mA ... 20 m
• Connection type: M20 x 1.5 / plug connector M12 x 1 pin assignment
• Housing material: Aluminum die cast AlSi10Mg, powder-coated (base: polyester)
• Process connection: Flange DN 80 PN 16 form B, DIN 316 / 316
• Enclosure rating: IP66 / IP68
• Control element: BluetoothMagnet pin operation
