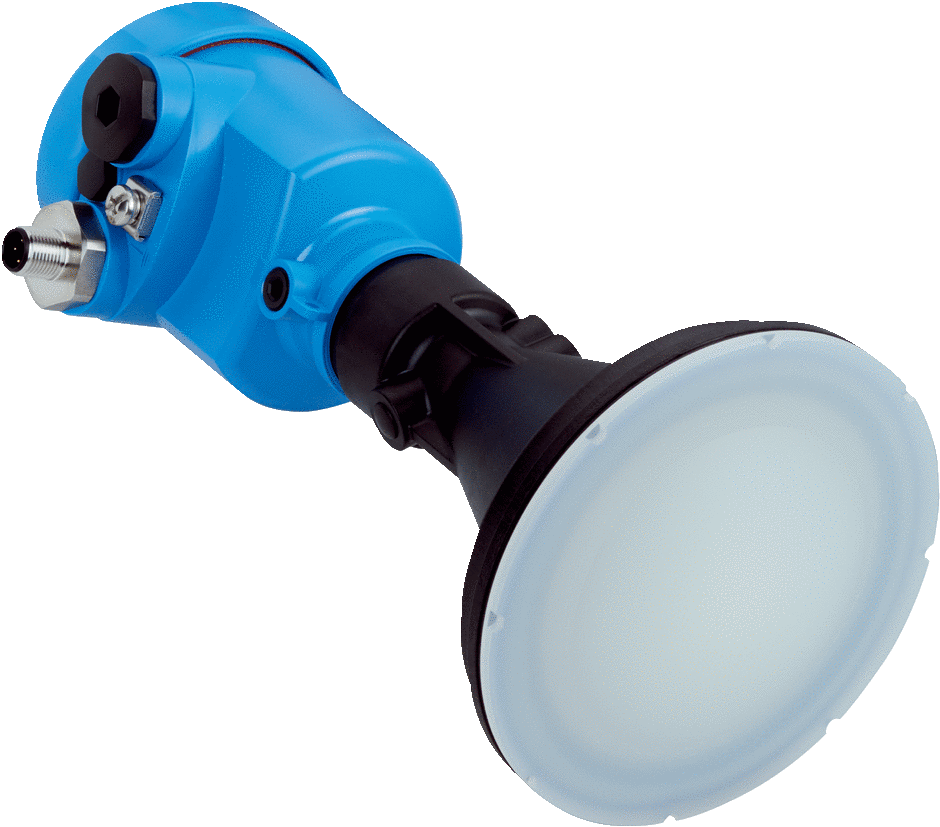

Sick LBR-XXBXXCBHAXX LEVEL BULK RADAR (6081800)

Level sensors LBR SicWave, LBR-XXBXXCBHAXX Measuring range: Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Process pressure: –1 bar ... 2 bar, (-100 kPa ... 200 kPa / –14.5 psig ... 29.1 psig) Process temperature: –40 °C ... +80 °C Probe type: Plastic horn antenna made from PP Output signal: 4 mA ... 20 mA / HART Connection type: M20 x 1.5 / plug connector M12 x 1 pin assignment B Housing material: Aluminum die cast AlSi10Mg, powder-coated (base: polyester) Process connection: Without process connection Indication: Without Enclosure rating: IP66 / IP68
