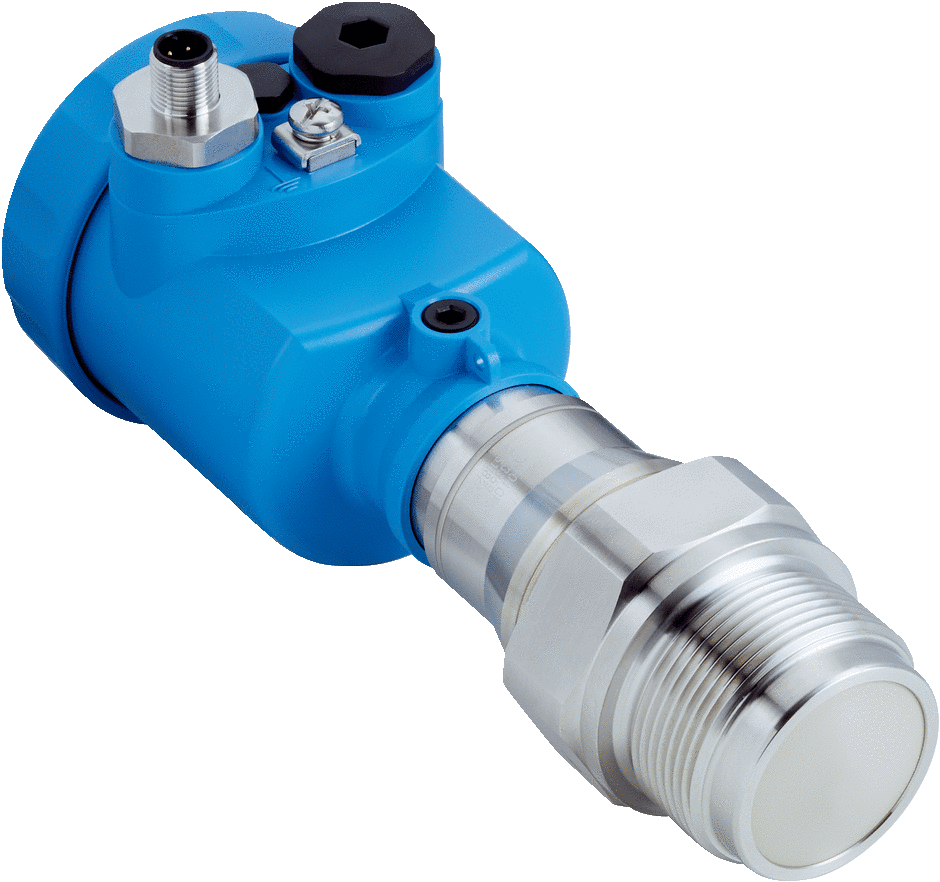

Sick LBR-IJUTDBOHAAX (6080286)

Level sensors LBR SicWave, LBR-IJUTDBOHAAX Measuring range: Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Process pressure: –1 bar ... 20 bar, (-100 kPa ... 2,000 kPa / –14.5 psig ... 290.1 psig) Process temperature: –40 °C ... +200 °C ATEX: IEC Ex db IIC T6...T1, Ga/Gb, Gb, IEC Ex ta, ta/tb, ta/tc, tb IIIC T* Da, Da/Db, Da/Dc, Db Probe type: Thread with integrated horn antenna made from PEEK Output signal: 4 mA ... 20 mA / HART Connection type: M20 x 1.5 / cable gland nickel-plated brass (ø 6 mm - 12 mm) Housing material: Aluminum die cast AlSi10Mg, powder-coated (base: polyester) Process connection: Thread 1 ½'' NPT PN20, ASME B1.20.1 / 316L Indication: Installed Enclosure rating: IP66 / IP68 Control element: Pushbutton operation
