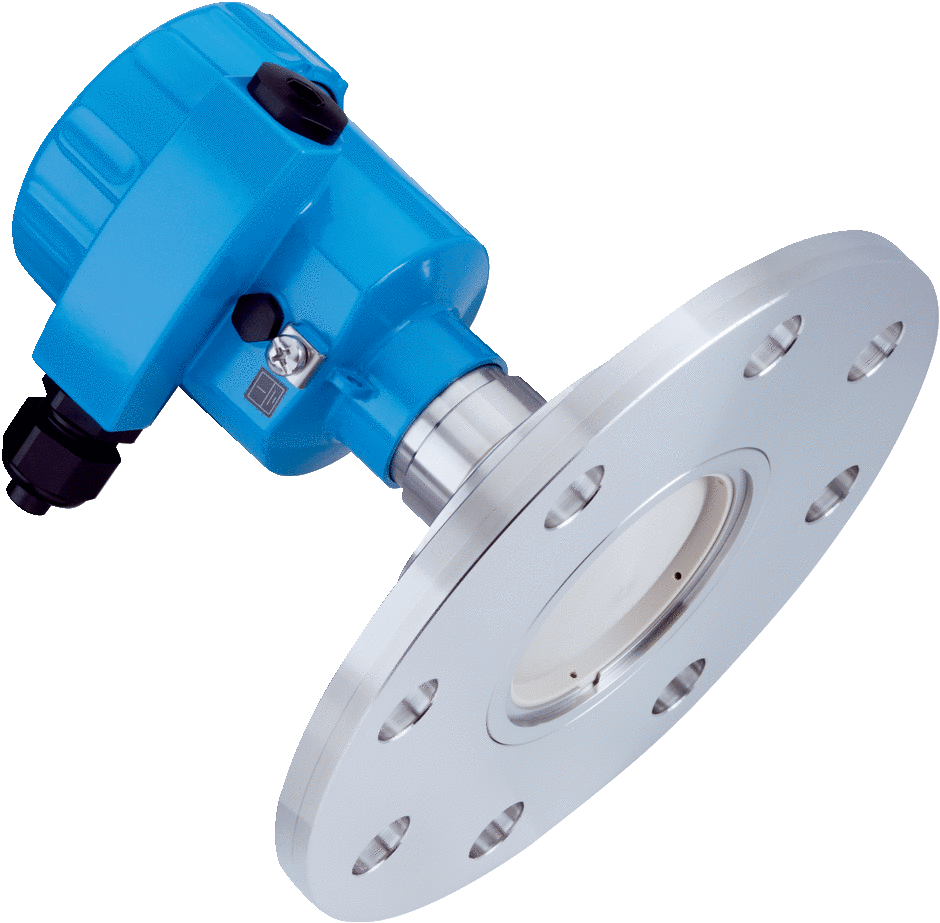

Sick LBR-IHCSAA2HAAX LEVEL BULK RADAR (6078020)

Level sensors LBR SicWave, LBR-IHCSAA2HAAX Measuring range: Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Process pressure: –1 bar ... 3 bar, (-100 kPa ... 300 kPa / –14.5 psig ... 43.5 psig) Process temperature: –40 °C ... +130 °C ATEX: IEC Ex ia IIC T6...T1, Ga, Ga/Gb, Gb, IEC Ex ta, ta/tb, ta/tc, tb IIIC T* Da, Da/Db, Da/Dc, Db Probe type: Metal jacketed lens antenna / PEEK / c/w air purge connection Output signal: 4 mA ... 20 mA / HART Connection type: M20 x 1.5 / cable gland nickel-plated brass (ø5 mm - 9 mm) Housing material: Aluminum die cast AlSi10Mg, powder-coated (base: polyester) Process connection: Swivel holder with flange DN100, PN16, form B, DIN / 316/316L Indication: Installed Enclosure rating: IP66 / IP68 Control element: Pushbutton operation
