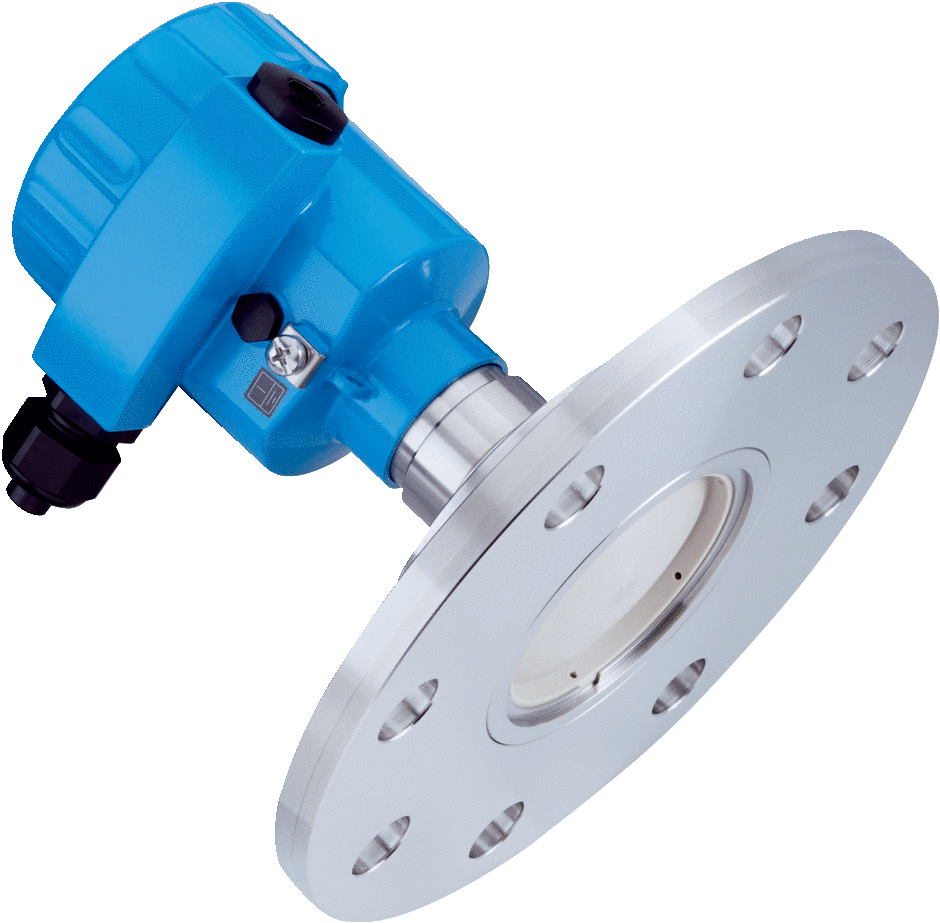

Sick LBR-IECSDBPHAAX LEVEL BULK RADAR (6078022)

Level sensors LBR SicWave, LBR-IECSDBPHAAX Measuring range: Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Process pressure: –1 bar ... 3 bar, (-100 kPa ... 300 kPa / –14.5 psig ... 43.5 psig) Process temperature: –40 °C ... +200 °C ATEX: IEC Ex db IIC T6...T1, Ga/Gb, Gb Probe type: Metal jacketed lens antenna / PEEK / c/w air purge connection Output signal: 4 mA ... 20 mA / HART Connection type: ½" NPT / cable gland nickel-plated brass (ø 6 mm - 12 mm) Housing material: Aluminum die cast AlSi10Mg, powder-coated (base: polyester) Process connection: Swivel holder with flange 4" 150 lb / 316/316L Indication: Installed Enclosure rating: IP66 / IP68 Control element: Pushbutton operation
