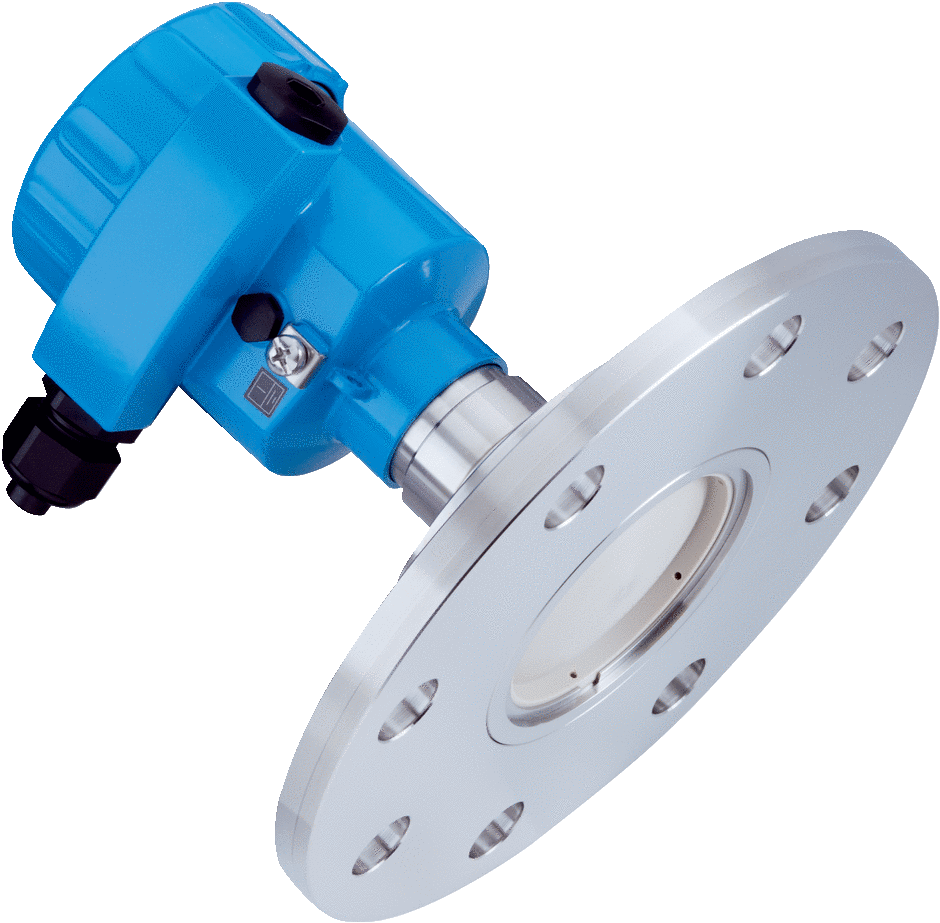

SICK LBR-ARCSAA1HAAX (6080468) — LEVEL SENSOR

A SICK level sensor for reliable point-level detection or continuous level measurement of liquids and bulk solids in tanks and vessels.

• Measuring range: Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft)
• Process pressure: –1 bar ... 3 bar, (-100 kPa ... 300 kPa / –14.5 psig ... 43.5 psig)
• Process temperature: –40 °C ... +130 °
• EX: ATEX II 1D, 1/2D, 1/3D, 2D Ex ta, ta/tb, ta/tc, tb IIIC T* Da, Da/Db, Da/Dc,
• Output signal: 4 mA ... 20 m
• Connection type: M20 x 1.5 / without cable
• Housing material: Aluminum die cast AlSi10Mg, powder-coated (base: polyester)
• Process connection: Swivel holder with flange DN100, PN16, form B, DIN / 316/316
• Enclosure rating: IP66 / IP68
