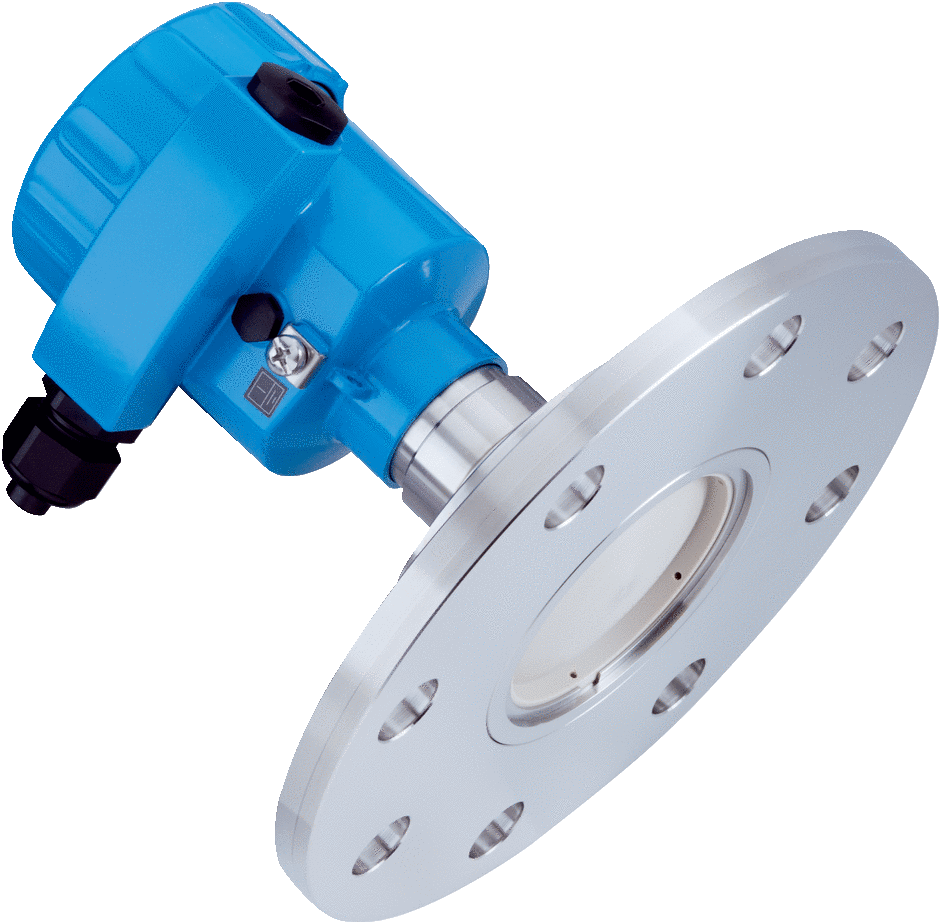

Sick LBR-AHCSAB2HAAX LEVEL BULK RADAR (6083029)

Level sensors LBR SicWave, LBR-AHCSAB2HAAX Measuring range: Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Process pressure: –1 bar ... 3 bar, (-100 kPa ... 300 kPa / –14.5 psig ... 43.5 psig) Process temperature: –40 °C ... +200 °C ATEX: ATEX II 1G, 1/2G, 2G Ex ia IIC T6 + II 1D, 1/2D, 1/3D, 2D Ex ta IIIC T* Probe type: Metal jacketed lens antenna / PEEK / c/w air purge connection Output signal: 4 mA ... 20 mA / HART Connection type: M20 x 1.5 / cable gland nickel-plated brass (ø5 mm - 9 mm) Housing material: Aluminum die cast AlSi10Mg, powder-coated (base: polyester) Process connection: Swivel holder with flange DN100, PN16, form B, DIN / 316/316L Indication: Installed Enclosure rating: IP66 / IP68
