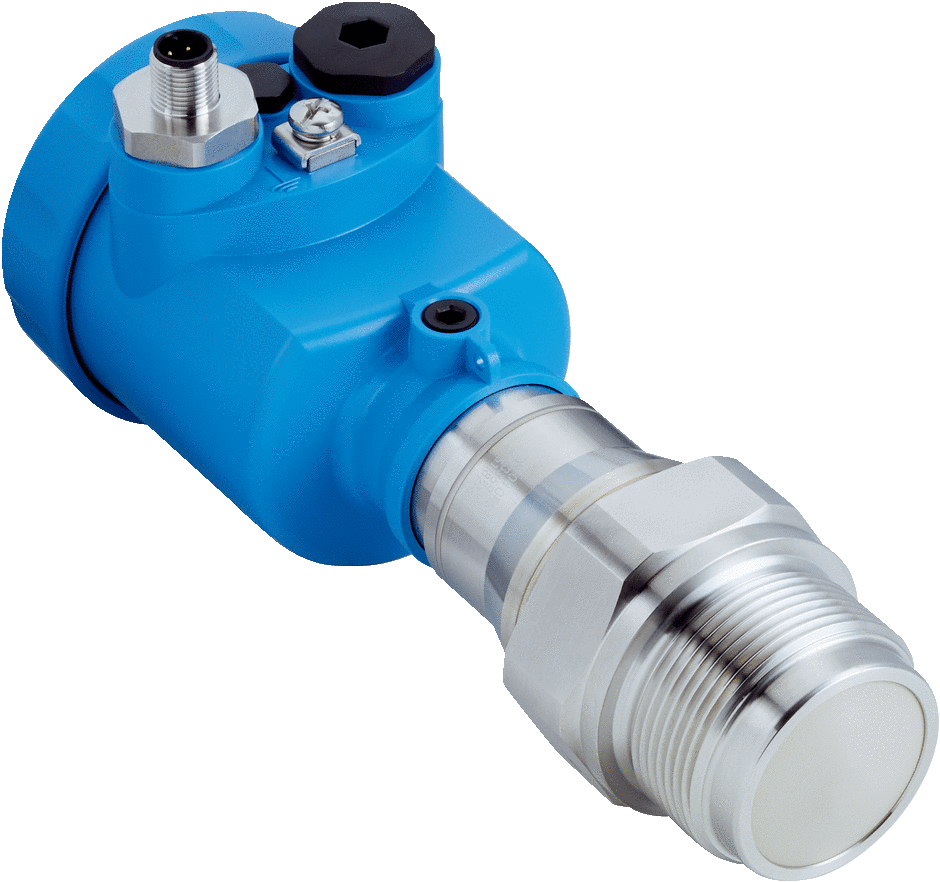

Sick LBR-ACTTDAJHKAX LEVEL BULK RADAR (6072184)

Level sensors LBR SicWave, LBR-ACTTDAJHKAX Measuring range: Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Process pressure: –1 bar ... 20 bar, (-100 kPa ... 2,000 kPa / –14.5 psig ... 290.1 psig) Process temperature: –40 °C ... +130 °C ATEX: ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Probe type: Thread with integrated horn antenna made from PEEK Output signal: 4 mA ... 20 mA / HART Connection type: ½" NPT / cable gland PA (ø 5 mm - 9 mm) Housing material: Plastic PBT (polyester) Process connection: Thread 1 ½'' NPT PN20, ASME B1.20.1 / 316L Indication: Installed Enclosure rating: IP67 / IP67 Control element: Pushbutton operation
