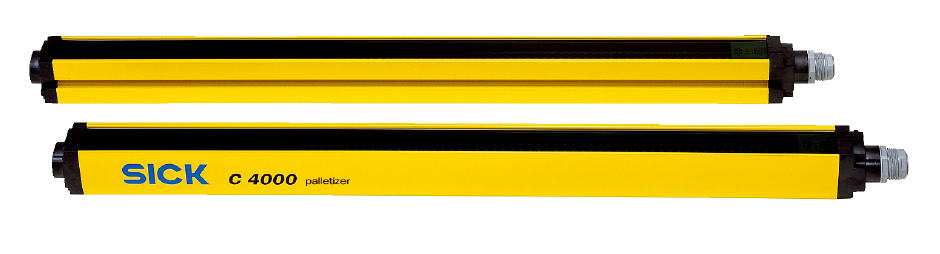

SICK C40E-1603FK010 (1043161) — SAFETY LIGHT CURTAIN

A SICK safety light curtain for reliable personnel protection, detecting the presence of hands, fingers, or bodies in hazardous machine zones.

• Safety level: PL e, SIL 3, Type 4
• Resolution: 30 mm
• Scanning range: 7 m
• Protective field height: 1,650 mm
• Connection type: Hirschmann male connector M26, 12-pin
• Enclosure rating: IP65
• Items supplied: Receiver, 8 sliding nuts for side mounting, test rod with diameter corresponding to the resolution of the safety light curtain, adhesive label with information on the daily check, operating instructions on CD-ROM, CDS (Configuration & Diagnostic Software)
