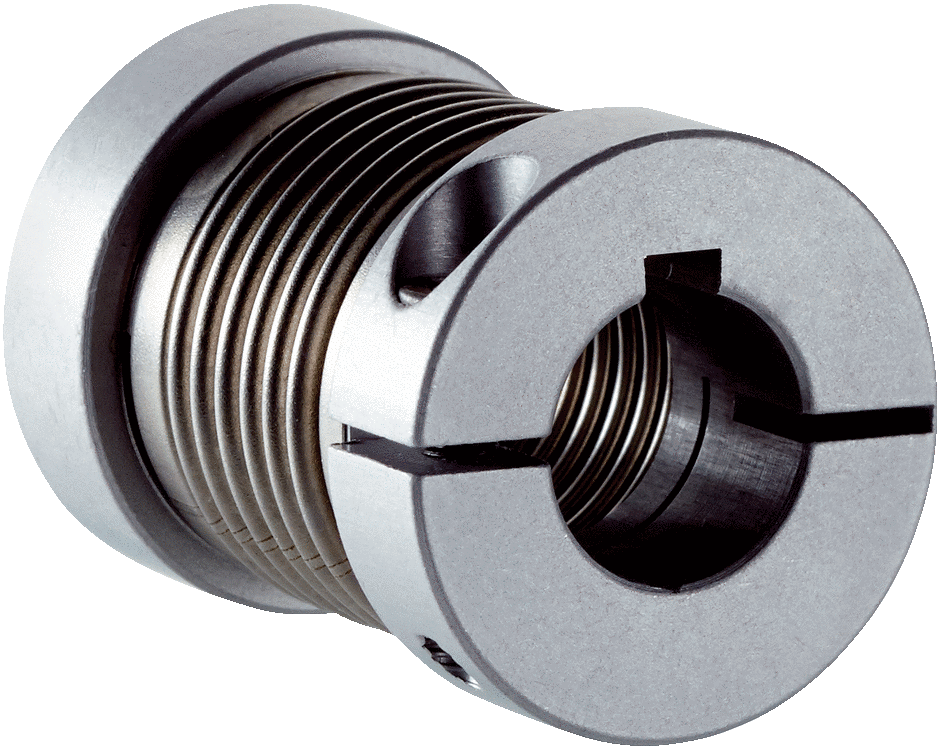

SICK KUP-1015-B (5319859) — SHAFT ADAPTATION ACCESSORIES

A SICK shaft adaptation accessory for flexible and secure encoder coupling in industrial drive systems.

• maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°
• material: stainless steel bellows, aluminum clamping hubs

• Description: 10 mm / 15 mm; maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°; max. revolutions 10,000 rpm, –30° to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum clamping hubs
