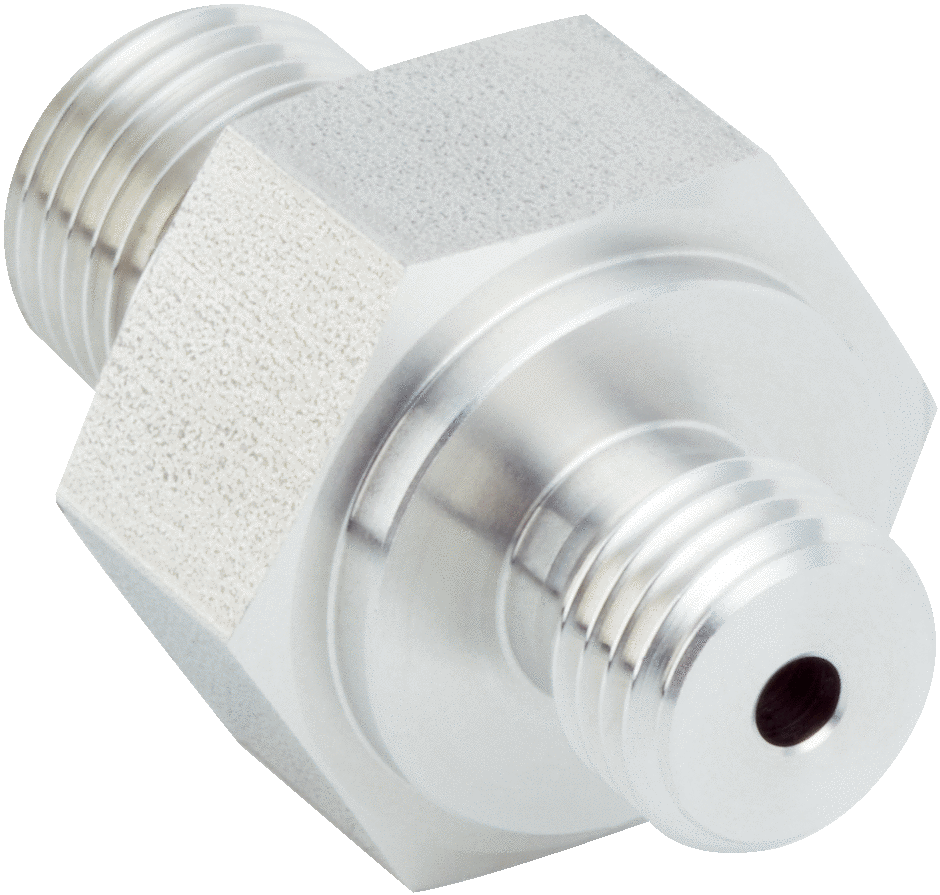

SICK BEF-AD-G14-SAE-PXX (2115409) — MOUNTING ACCESSORY

A SICK mounting accessory designed for secure and flexible installation of sensors in industrial applications.

• attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel)
• connection on process side: SAE 7/16-20 (according to SAE J514) including seal (FKM)
• width across flats: 21

• Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: SAE 7/16-20 (according to SAE J514) including seal (FKM); width across flats: 21; pressure resistance according to standard, but max. 345 bar (possible classification according to Pressure Equipment Directive (DGRL) is application-specific and therefore the responsibility of the user/operating entity.)
• Details: Stainless steel 1.4404
